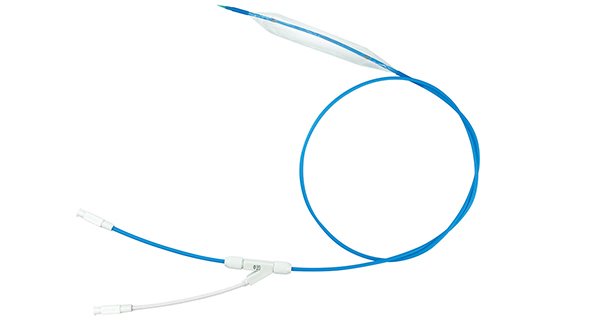

PortuguêsDisposable Balloon Catheter
Features of the Balloon Catheter
1. The balloon catheter comes with a high pressure balloon that won't burst during inflation.
2. Graduation marks on the balloon are clearly visible with an X-ray.
3. The diameter of the biopsy catheter is specific to the kind of duct it is used in.
4. The balloon can be folded to one-third of its original size, so it can pass easily through a 2.8mm diameter hole during biopsy. After reaching its proper biopsy site, the balloon can safely and conviently expand under the guidance of an endoscope.
5. Matching guide wire size:0.035
6. Various specifications are equipped
Surgical Applications
This surgical instrument is used for the dilation of the esophageal, helicobacterial, and biliary duct.
| Type | Sheath outer diameter (+0.3~-0.1)x Sheath effective length (+_100) | Balloon Diameter (+0.8~-1) x Balloon length(+_3) | Rated Pressure | Blasting Pressure | Guide Wire Specifications |
| 2.1x1900 | 6X20 | 10 | 12 | 0.035’’ | |
| 6X40 | 10 | 12 | |||
| 8X40 | 8 | 12 | |||
| 8X60 | 8 | 12 | |||
| 10X30 | 6 | 10 | |||
| 10X40 | 6 | 10 | |||
| 10X60 | 6 | 10 | |||
| 12X40 | 5 | 8 | |||
| 12X60 | 5 | 8 | |||
| 14X40 | 4 | 8 | |||
| 2.1x2100 | 14X60 | 4 | 8 | ||
| 16X55 | 4 | 6 | |||
| 16X80 | 4 | 6 | |||
| 18X55 | 3 | 6 | |||
| 18X80 | 3 | 6 | |||
| 20X55 | 3 | 6 | |||
| 20X80 | 3 | 6 | |||
| 25X80 | 2.5 | 4 | |||
| 30X80 | 2.5 | 4 | |||
| 35X80 | 2.5 | 4 |
Package
One piece packed with dialysis bag. Then put into a colored box together with the operation instruction.
Customized logo accepted.
Can be used directly, we have sterilized it before delivery.
