Gamma Nail

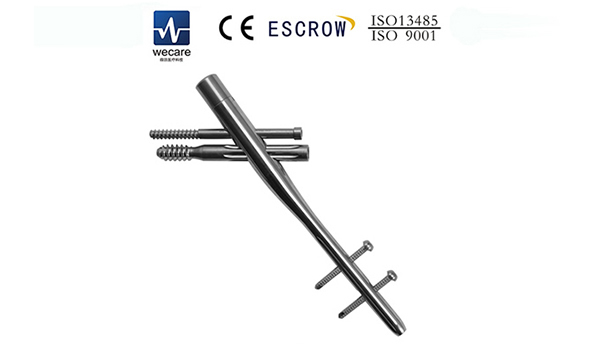

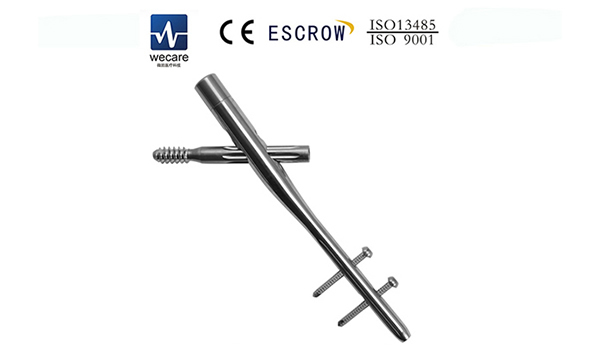

PF Gamma Intramedullary Nail
Technical Specs of Gamma Nail
Product name Material Diameter (mm) Length (mm) Product ID No.
KTO-PFNA Gamma interlocking nails Titanium alloy 10 180 8710180
220 8710220
240 8710240
11 180 8711180
220 8711220
240 8711240
12 180 8712180
220 8712220
240 8712240
Product name Material Diameter (mm) Length (mm) Product ID No.

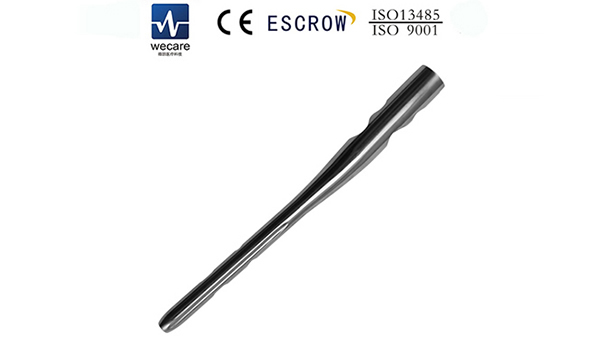

KTO-PFNA Intramedullary nail Titanium alloy 10.5 70-120 (minimum increment of 5mm) 8553070- 8553120
Product name Material Diameter (mm) Length (mm) Product ID No.
PF Gamma interlocking nails Titanium alloy 10 180 8410180
220 8410220
240 8410240
11 180 8411180
220 8411220
240 8411240
12 180 8412180
220 8412220
240 8412240
Product name Material Diameter (mm) Length (mm) Product ID No.

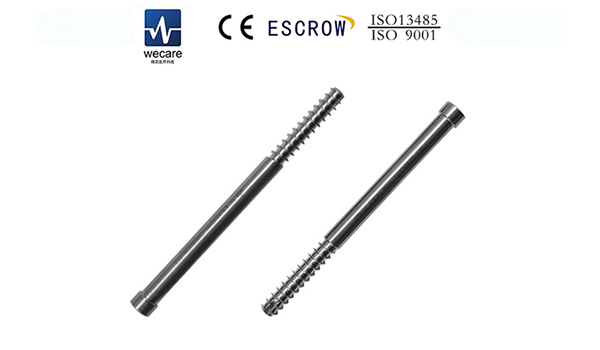

Lag screw Titanium alloy 10.5 70-115 (minimum increment of 5mm) 8550070- 8550115
Product name Material Diameter (mm) Length (mm) Product ID No.
Anti-rotation screw Titanium alloy 6.5 60-115 (minimum increment of 5mm) 8566460-
85664115
Product name Material Diameter (mm) Length (mm) Product ID No.

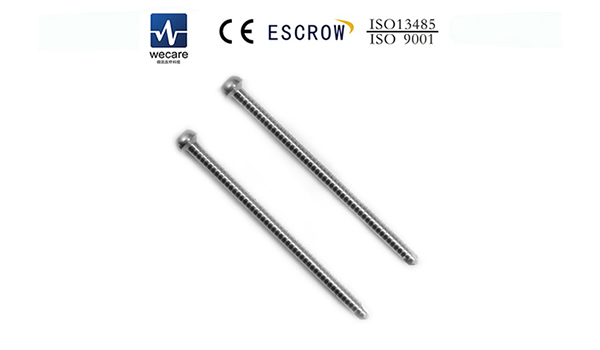

Full threaded locking screw Titanium alloy 4.5 30-80 (minimum increment of 5mm) 8524030- 8524080
Product name Material Diameter (mm) Product ID No.
Locking end caps Titanium alloy 0 8570000
5 8570005
10 8570010
15 8570015
Normal end caps Titanium alloy 0 8580000
5 8580005
10 8580010
15 8580015
