Mini Locking Plate
Various types of bone fractures and bone repair surgeries require the use of our mini locking plate, including:
1. Distal and Middle Phalanx Fracture
2. Ligament tear
3. Metacarpal fracture
4. Ankle, middle bone, and toe fracture
5. Extra-articular calcaneal fracture
6. Arthroplasty
7. Osteotomy
Product name |
Material |
No. of Holes |
Product ID No. |

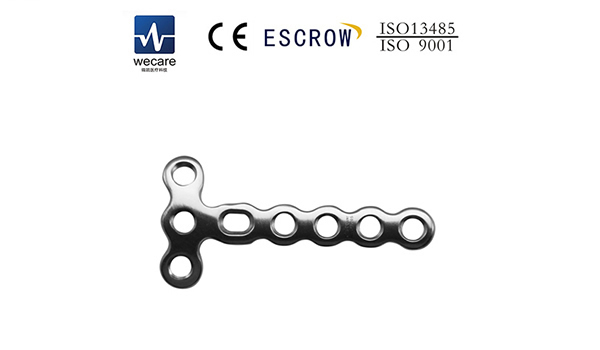

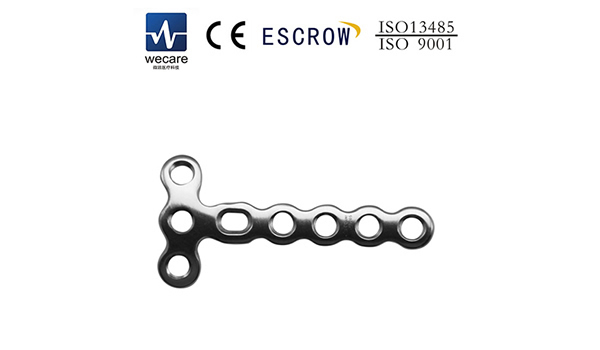

2.0 T-shape locking plate (with 3 holes in the plate head) |
Pure titanium |
5, 6 , 7 , 8 |
4120205-4120209 |
Note: Use Φ2.0 locking screws (triangular) and HA2.0 screws (triangular). |
Product name |
Material |
No. of Holes |
Product ID No. |

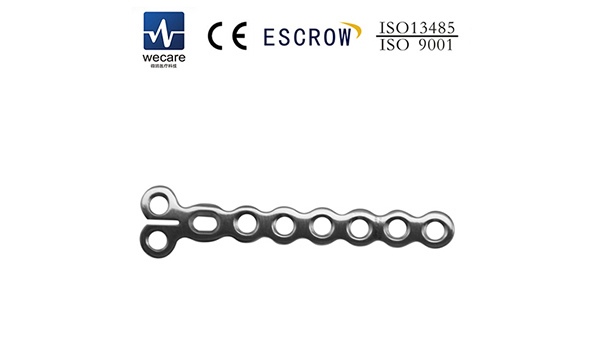

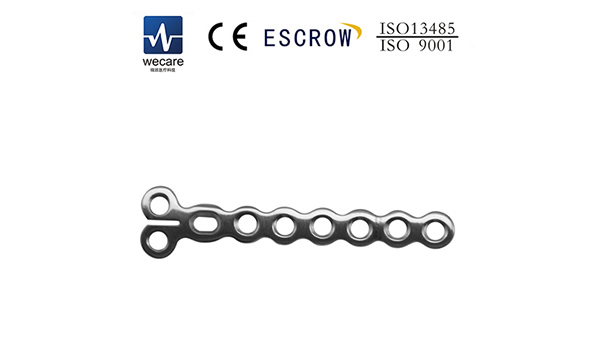

2.0 ankle locking plate |
Pure titanium |
5, 6 , 7 , 8 , 9 |
4120405-4120409 |
Note: Use Φ2.0 locking screws (triangular) and HA2.0 screws (triangular). |
Product name |
Material |
No. of Holes |
Product ID No. |

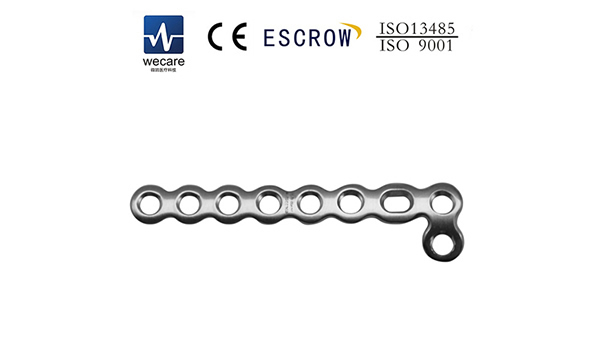

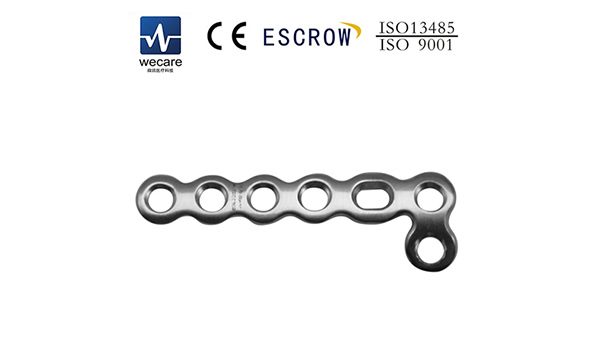

2.0 L -shaped locking plate (left, right) |
Pure titanium |
5, 6 , 7 , 8 |
4120605-4120609R/L |
Note: Use Φ2.0 locking screws (triangular) and HA2.0 screws (triangular). |
Product name |
Material |
No. of Holes |
Product ID No. |

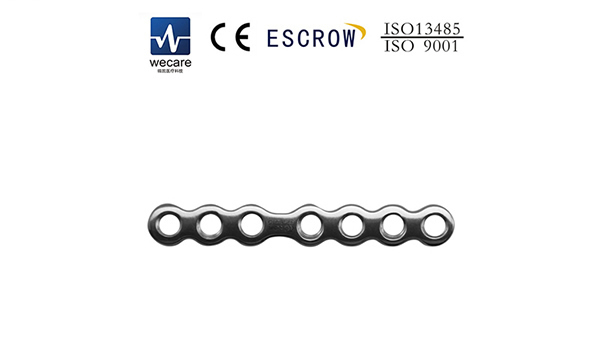

2.0 straight locking plate |
Pure titanium |
5, 6 , 7 , 8 , 9 , 10 |
4120004-4120010 |
Note: Use Φ2.0 locking screws (triangular) and HA2.0 screws (triangular). |
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |
Triangular locking screw |
Titanium alloy |
2.0 |
6-22 (minimum increment of 2mm) |
4802006-4802022 |
Screw Head |
Material |
Diameter (mm) |
Length (mm) |
Product No. |
Triangle |
Titanium alloy |
2.0 |
6-22 (minimum increment of 2mm) |
5412006-5412022 |
Product name |
Material |
No. of Holes |
Product ID No. |

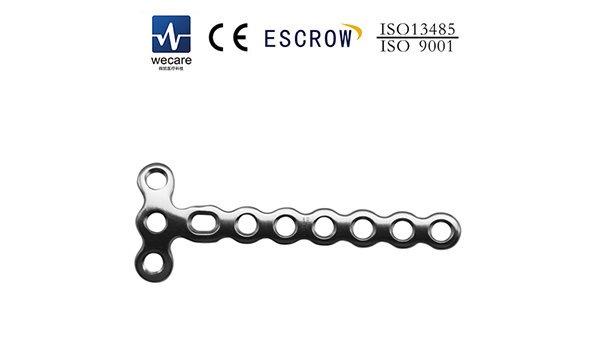

2.5T-type locking plate (three holes in the plate head) |
Pure titanium |
6, 7 , 8 , 9 , 10 |
4125206-4125210 |
Note: Use Φ2.5 locking screws and HA2.5 screws. |
Product name |
Material |
No. of Holes |
Product No. |

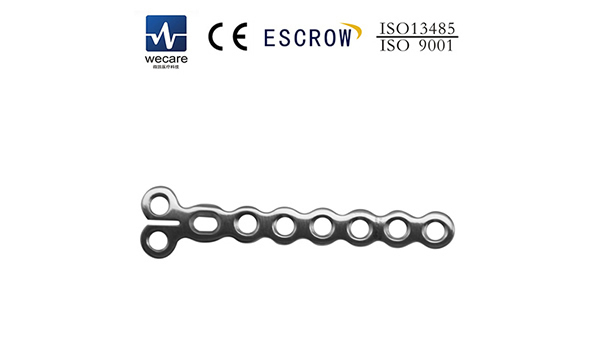

2.5 ankle locking plate |
Pure titanium |
5, 6 , 7 , 8 , 9 |
4125405-4125409 |
Note: Use Φ2.5 locking screws and HA2.5 screws. |
Product name |
Material |
No. of Holes |
Product ID No. |

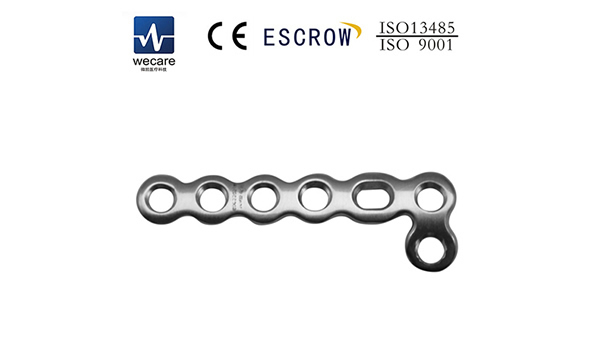

2.5 L -shape locking plate (left, right) |
Pure titanium |
5, 6 , 7 , 8 , 9 |
4125605-4125609R/L |
Note: Use Φ2.5 locking screws and HA2.5 screws. |
Product name |
Material |
No. of Holes |
Product ID No. |

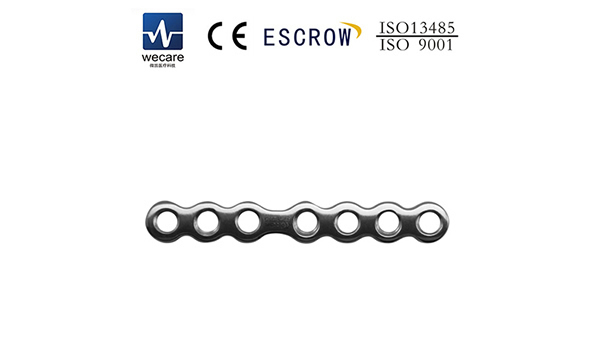

2.5 straight locking plate |
Pure titanium |
4, 5 , 6 , 7 , 8 , 9 , 10 |
4125004-4125010 |
Note: Use Φ2.5 locking screws and HA2.5 screws. |
Product name |
Material |
No. of Holes |
Product ID No. |
2.5 Talus locking plate |
Pure titanium |
6 |
4125706 |
Note: Use Φ2.5 locking screws. |
Product name |
Material |
No. of Holes |
Product ID No. |
2.5 navicular locking plate |
Pure titanium |
11 |
4125811 |
Note: Use Φ2.5 locking screws. |
Product name |
Material |
No. of Holes |
Product ID No. |

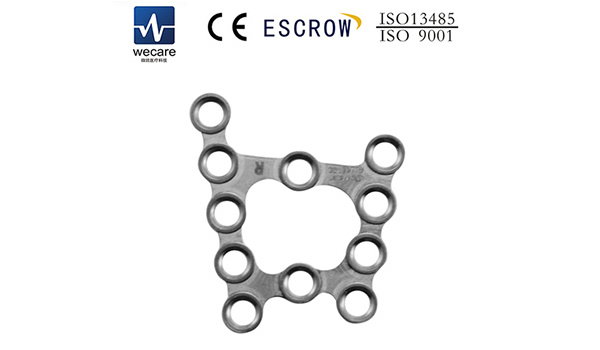

2.5 Cuboid bone locking plate (left, right) |
Pure titanium |
11 |
4125911R/L |
Note: Use Φ2.5 locking screws. |
Product name |
Material |
No. of Holes |
Product ID No. |

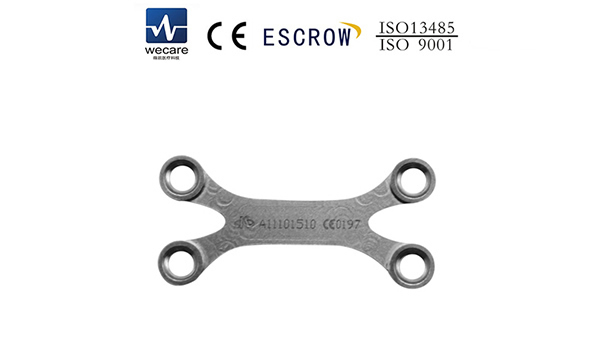

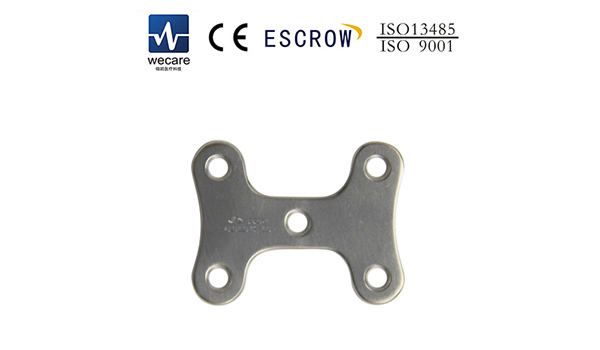

2.7 H-type locking plate |
Pure titanium Pure titanium |
5 |
4127705 |
8 |
4127708 |
Note: Use Φ2.7 locking screws. |
Product name |
Material |
Width (mm) |
Length (mm) |
Product ID No. |
2.7 X-shape locking plate |
Pure titanium |
8 |
16 |
4127816 |
12 |
18 |
4127818 |
14 |
24 |
4127824 |
30 |
4127830 |
Note: Use Φ2.7 locking screws. |
Product name |
Material |
No. of Holes |
Product ID No. |
2.7 T-shape locking plate (three holes in the head) |
Pure titanium |
10 |
4127210 |
Note: Use Φ2.7 locking screws and HA2.7 screws. |
Product name |
Material |
No. of Holes |
Product ID No. |
2.7 ankle locking plate |
Pure titanium |
9 |
4127409 |
Note: Use Φ2.7 locking screws and HA2.7 screws. |
Product name |
Material |
No. of Holes |
Product No. |
2.7 L -shape locking plate (left, right) |
Pure titanium |
9 |
4125609R/L |
Note: Use Φ2.7 locking screws and HA2.7 screws. |
Product name |
Material |
No. of Holes |
Product ID No. |
22.7 straight locking plate |
Pure titanium |
6 |
4127006 |
8 |
4127008 |
Note: Use Φ2.7 locking screws. |
