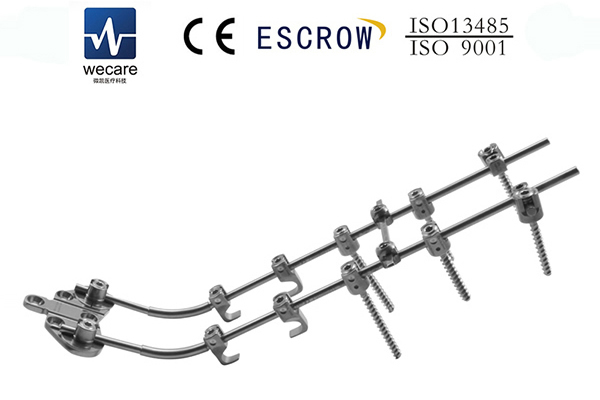

Screw and Rod Fixation System
, KCO3.2

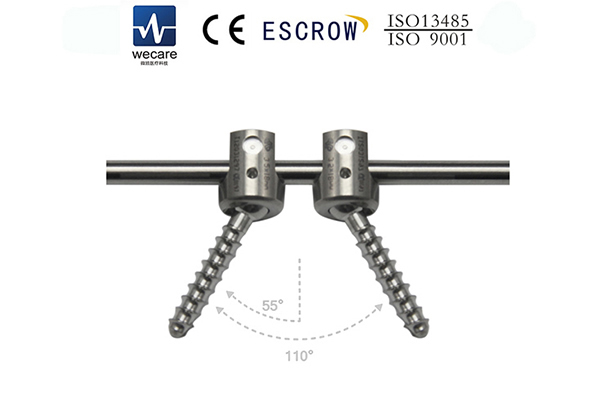

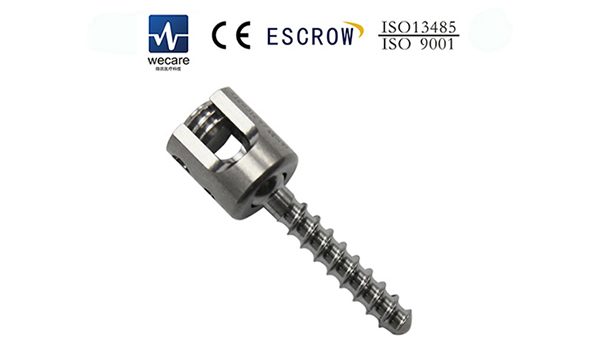

The KCO3.2 is a multi-axial pedicle screw that provides a full 55° range of motion or, more technically known as conical angulation. Uniquely tapered heads are more accommodating to variables in patient anatomy. It is easy to arrange screw heads in a straight line, thus reducing the need for rod bending. Note that the technical term for rod bending is rod contouring, which is to bend the rod to conform to the shape of the bone.

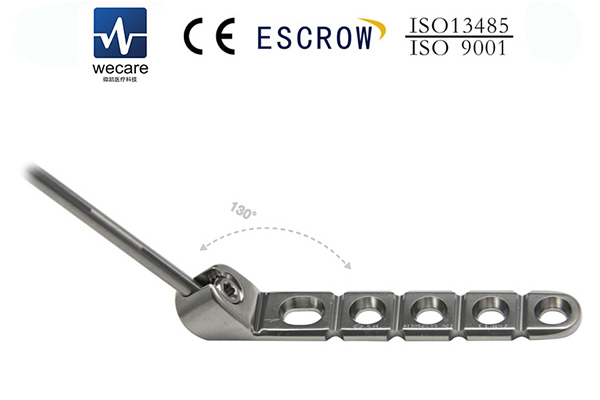

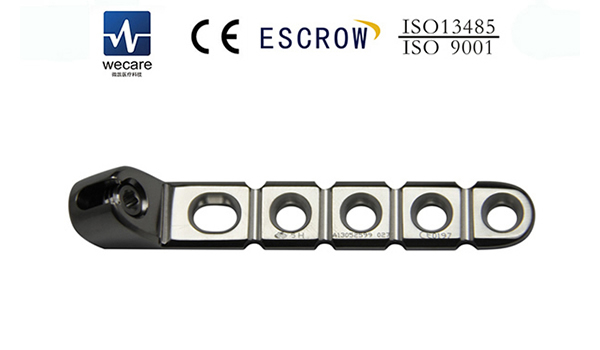

KCO-R occipital plate connects with the rod at one end, and secures the atlanto-occipital joint at the other end.
KCO-R occipital plate is positioned at 130° angle to the bone being fixated.

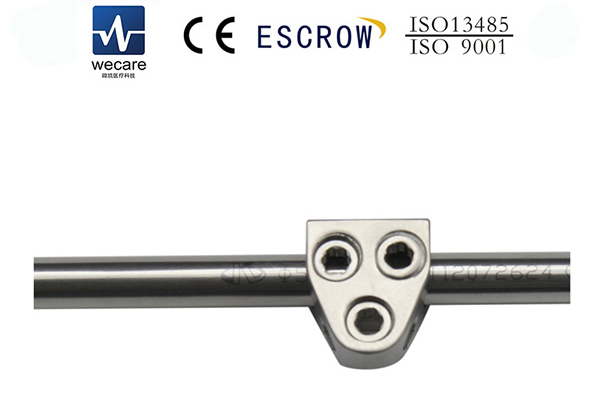

Domino connector connects with Φ6.0 and Φ5.5 rods.

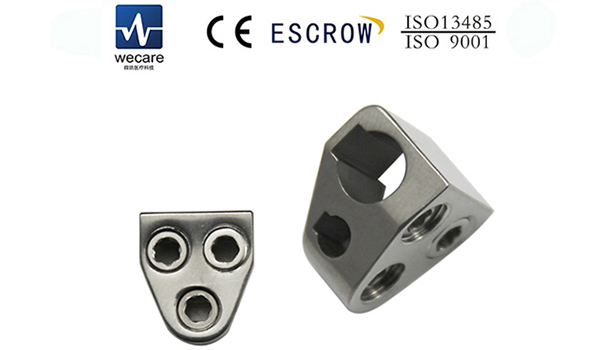

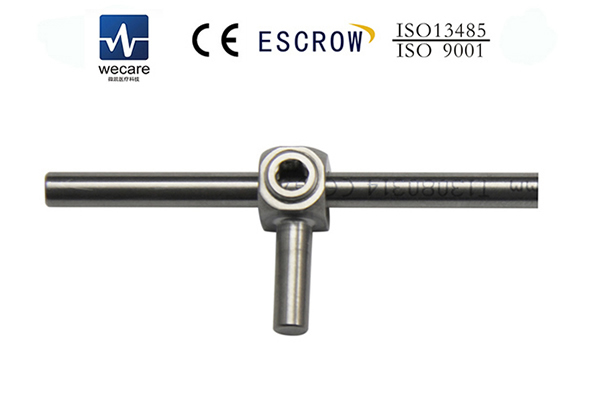

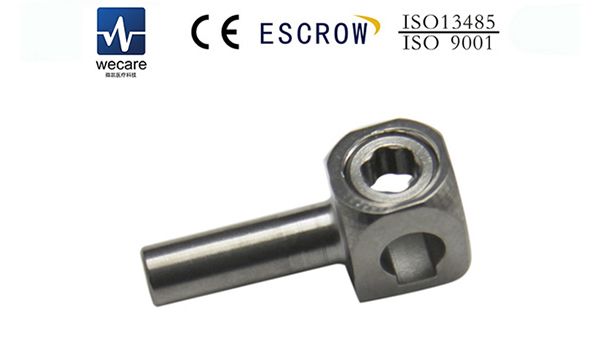

KCO lateral offset connector allows adjustment of screws that are not arranged in a straight line.
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |
KCO Multi-Axial Pedicle Screw |
Titanium alloy |
3.5 |
10 |
6413510 |
12 |
6413512 |
14 |
6413514 |
16 |
6413516 |
18 |
6413518 |
20 |
6413520 |
22 |
6413522 |
24 |
6413524 |
26 |
6413526 |
28 |
6413528 |
30 |
6413530 |
32 |
6413532 |
34 |
6413534 |
4.0 |
10 |
6414010 |
12 |
6414012 |
14 |
6414014 |
16 |
6414016 |
18 |
6414018 |
20 |
6414020 |
22 |
6414022 |
24 |
6414024 |
26 |
6414026 |
28 |
6414028 |
30 |
6414030 |
32 |
6414032 |
34 |
6414034 |
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |

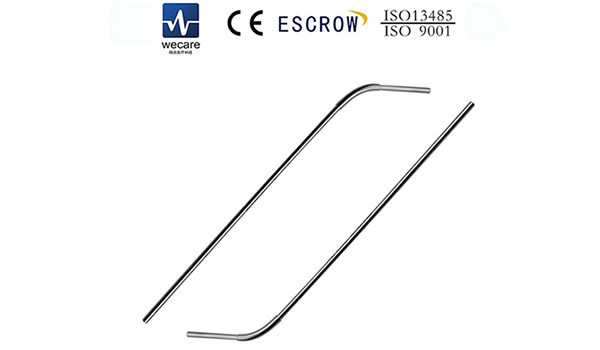

KCO occipital bone rod |
Titanium alloy |
3.2 |
200 |
644320200 |
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |

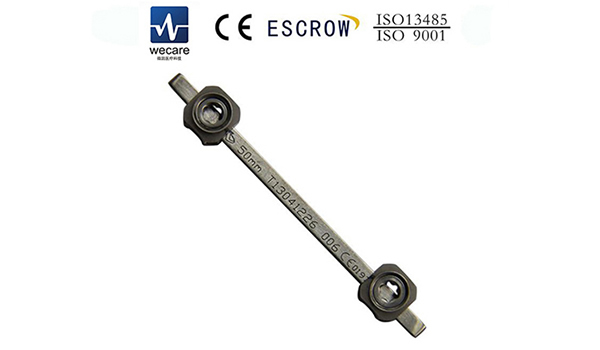

EF3.2 cross connector |
Titanium alloy |
3.2 |
40 |
6470040 |
50 |
6470050 |
60 |
6470060 |
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |

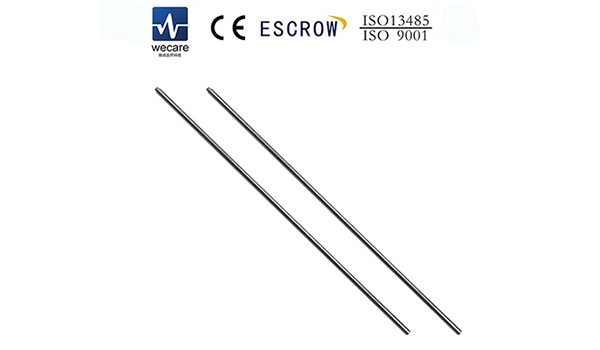

KCO rod |
Titanium alloy |
3.2 |
50-100 |
64432050-100 |
200 |
644320200 |
Product name |
Material |
Diameter |
Product ID No. |
KCO Domino connector |
Titanium alloy |
Φ 3.2× 5.5 |
6453255 |
Φ 3.2× 6.0 |
6453260 |
Product name |
Material |
Diameter |
Product ID No. |
KCO Laminar hook |
Titanium alloy |
4.5 |
6453245 |
6.0 |
6453260 |
Product name |
Material |
Diameter |
Product ID No. |
KCO Lateral offset connector |
Titanium alloy |
Φ 3.2× 3.2 |
6453232 |
Product name |
Material |
No. of Holes |
Product ID No. |
KCO-R Occipital plate |
Titanium alloy |
5 |
6481005 |
Product name |
Material |
No. of Holes |
Product ID No. |

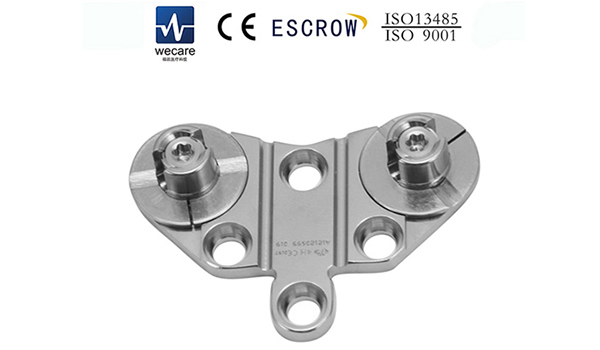

KCO-S Occipital plate |
Titanium alloy |
4 |
6480004 |
