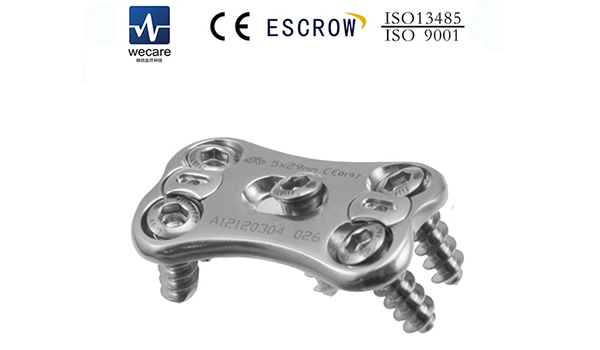

Anterior Cervical Plate-I System

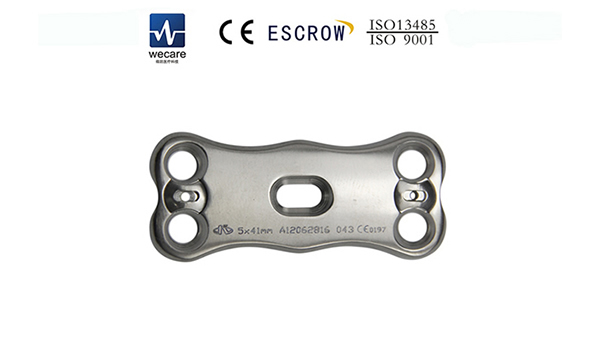

Anterior Cervical Plate
Low-profile anterior cervical plate, of 1.8mm in thickness.
Steel plate allows the fixation screw a 0°~12° range of motion in the frontal plane and a 0°~10° range of motion in the sagittal plane.
Technical Specs of Anterior Cervical Plate
Product name |
Material |
No. of Holes |
Length (mm) |
Product ID No. |
Anterior cervical Plate-I |
Pure titanium |
5 |
22 |
6510522 |
25 |
6510525 |
27 |
6510527 |
29 |
6510529 |
32 |
6510532 |
35 |
6510535 |
38 |
6510538 |
41 |
6510541 |
44 |
6510544 |
6 |
47 |
6510647 |
40 |
6510640 |
53 |
6510653 |
56 |
6510656 |
59 |
6510659 |
62 |
6510662 |
7 |
65 |
6510765 |
68 |
6510768 |
71 |
6510771 |
74 |
6510774 |
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |

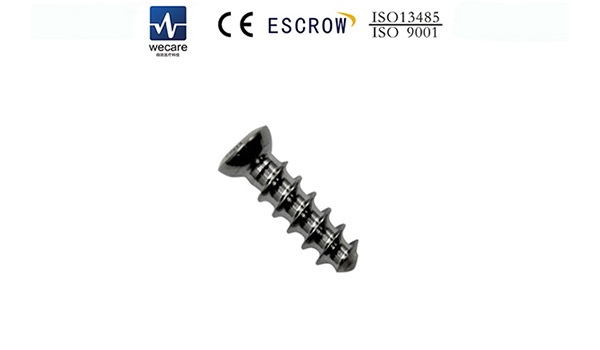

Spinal fixation screw |
Titanium alloy |
4.0 |
13 |
6544013 |
14 |
6544014 |
15 |
6544015 |
16 |
6544016 |
17 |
6544017 |
18 |
6544018 |
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |

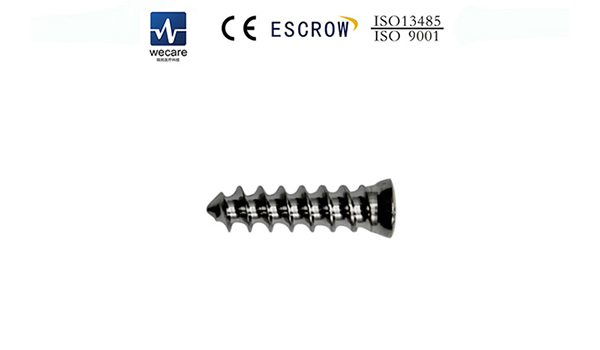

Rescue screw |
Titanium alloy |
4.5 |
14 |
6554514 |
15 |
6554515 |
16 |
6554516 |
17 |
6554517 |
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |

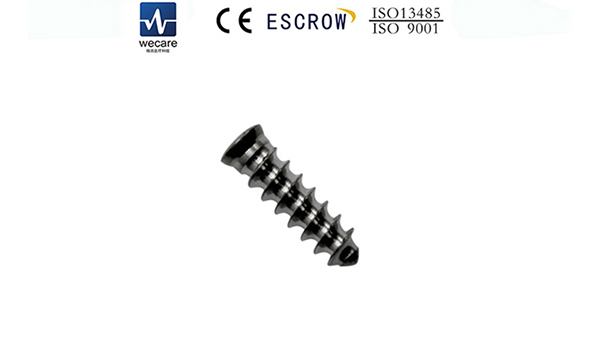

Implant screw |
Titanium alloy |
4.0 |
13 |
6554013 |
14 |
6554014 |
15 |
6554015 |
16 |
6554016 |
17 |
6554017 |
18 |
6554018 |
20 |
6554020 |
22 |
6554022 |
24 |
6554023 |
