PortuguêsAnterior Cervical Plate-II System

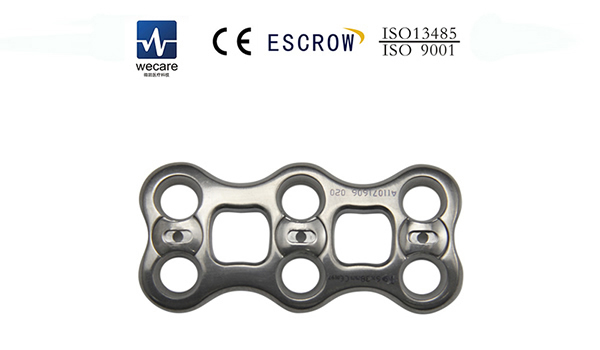

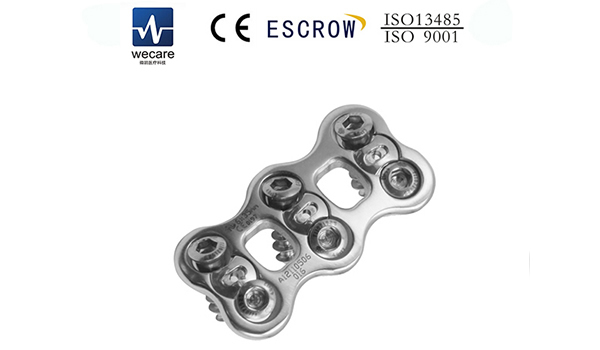

Anterior Cervical Plate The anterior cervical plate-II system features a low-profile plate design as thin as 1.8mm. Unique graft-viewing windows allow for better visualization of the bone graft positioning process. Steel plate allows the fixation screw a 0°~12° range of motion in the front plane and a 0°~10° range of motion in the sagittal plane.
Technical Specs of Anterior Cervical Plating System
| Product name | Material | No. of holes | Length (mm) | Product ID No. |
| Anterior cervical Plate-II | Pure titanium | 4 | 22 | 6520422 |
| 25 | 6520425 | |||
| 27 | 6520427 | |||
| 30 | 6520430 | |||
| 6 | 32 | 6520632 | ||
| 35 | 6520635 | |||
| 38 | 6520638 | |||
| 41 | 6520641 | |||
| 44 | 6520644 | |||
| 47 | 6520647 | |||
| 50 | 6520650 | |||
| 8 | 53 | 6520853 | ||
| 56 | 6520856 | |||
| 59 | 6520859 | |||
| 62 | 6520862 | |||
| 65 | 6520865 | |||
| 68 | 6520868 | |||
| 71 | 6520871 |
| Product name | Material | Diameter (mm) | Length (mm) | Product ID No. |

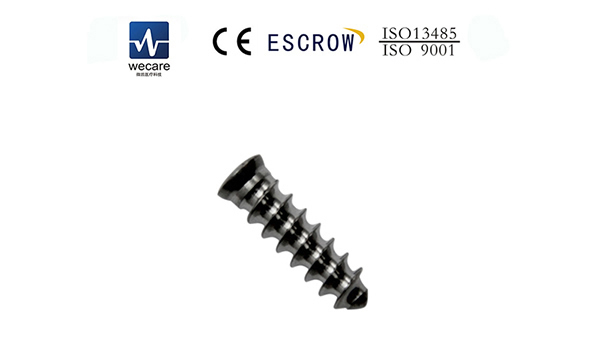

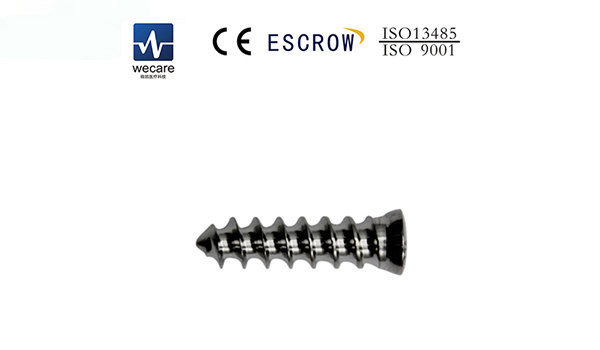

| Cervical fusion screw | Titanium alloy | 4.5 | 13 | 6544013 |
| 14 | 6544014 | |||
| 15 | 6544015 | |||
| 16 | 6544016 | |||
| 17 | 6544017 | |||
| 18 | 6544018 |
| Product name | Material | Diameter (mm) | Length (mm) | Product ID No. |
| Rescue screw | Titanium alloy | 4.5 | 14 | 6554514 |
| 15 | 6554515 | |||
| 16 | 6554516 | |||
| 17 | 6554517 |
