Torx Spinal Fixation System
, KSS-I6.0
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |

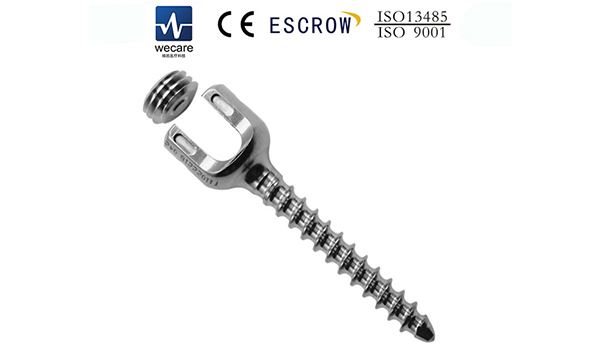

KSS 6.0 Pedicle screw with open tulip head |
Titanium alloy |
4.5 |
30 |
5814530 |
35 |
5814535 |
5.0 |
30 |
5815030 |
35 |
5815035 |
5.5 |
35 |
5815535 |
40 |
5815540 |
6.0 |
35 |
5816035 |
40 |
5816040 |
45 |
5816045 |
6.5 |
35 |
5816535 |
40 |
5816540 |
45 |
5816545 |
50 |
5816550 |
7.0 |
35 |
5817035 |
40 |
5817040 |
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |

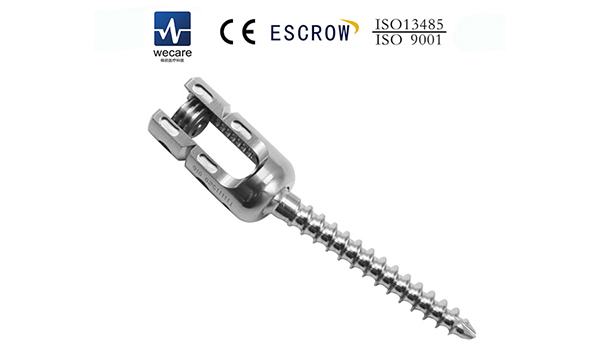

KSS 6.0 Multi-axial breakaway pedicle screw with open tulip head |
Titanium alloy |
4.0 |
30 |
5834030 |
4.5 |
30 |
5834530 |
35 |
5834535 |
5.0 |
30 |
5835030 |
35 |
5835035 |
5.5 |
30 |
5835530 |
35 |
5835535 |
40 |
5835540 |
45 |
5835545 |
6.0 |
30 |
5836030 |
35 |
5836035 |
40 |
5836040 |
45 |
5836045 |
6.5 |
30 |
5836530 |
35 |
5836535 |
40 |
5836540 |
45 |
5836545 |
50 |
5836550 |
55 |
5836555 |
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |

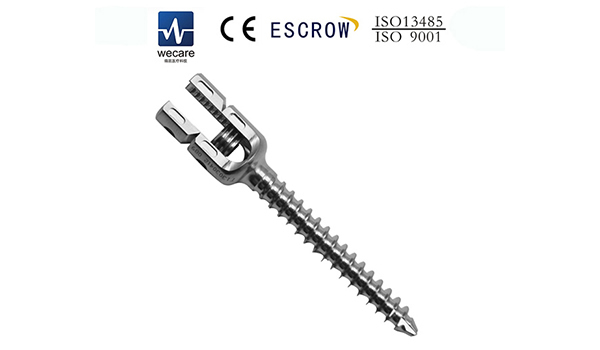

KSS 6.0 breakaway pedicle screw with open tulip head |
Titanium alloy |
4.5 |
35 |
5824535 |
5.0 |
30 |
5825030 |
35 |
5825035 |
5.5 |
35 |
5825535 |
40 |
5825540 |
45 |
5825545 |
6.0 |
35 |
5826035 |
40 |
5826040 |
45 |
5826045 |
50 |
5826050 |
6.5 |
35 |
5826535 |
40 |
5826540 |
45 |
5826545 |
50 |
5826550 |
55 |
5826555 |
7.0 |
35 |
5827035 |
40 |
5827040 |
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |

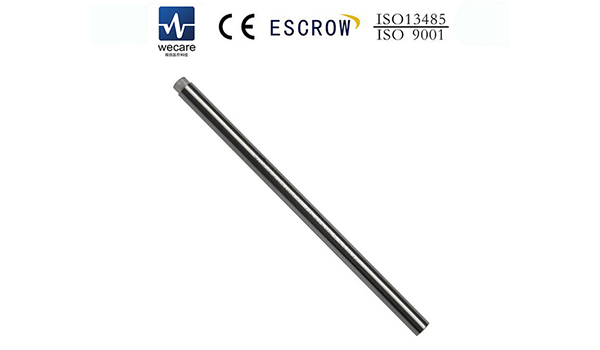

Rod |
Titanium alloy |
6.0 |
50-180 (minimum increment of 10mm) |
6150050-180 |
200-360 (minimum increment of 20mm) |
6150200-360 |
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |

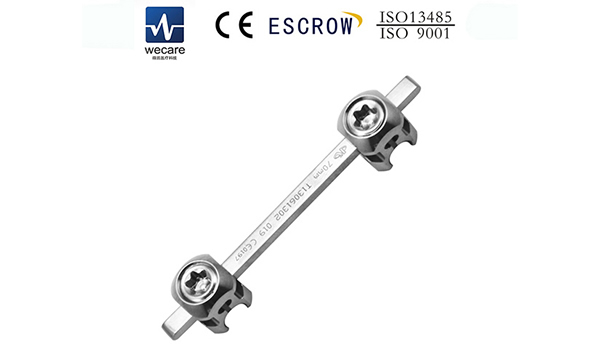

EF6.0 cross connector |
Titanium alloy |
6.0 |
50 |
6190050 |
60 |
6190060 |
70 |
6190070 |
80 |
6190080 |
90 |
6190090 |
