Anterior Fixation System
, KSS-II5.5

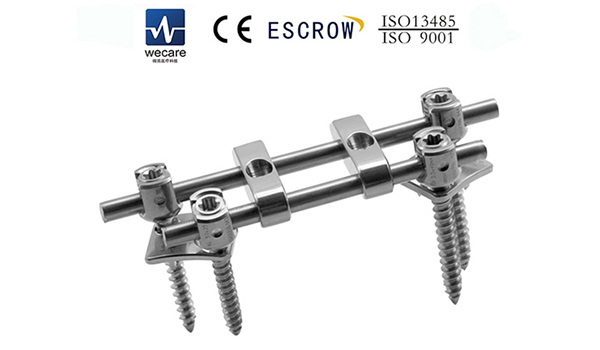

The KSS-II5.5 is an anterior fixation system that uses low-profile cancellous screws to assist in spinal fusion surgery. Trapezoidal threads on the screw minimize external radial load felt by the screw head, preventing spinal segments from slipping all the while securing bones tightly in place.
KSS-II5-5mm Anterior Fixation System
Enlarged root diameter reduces the risk of screw breakage. Friction fit washer sticks tightly to the spinal segments to be fixated. Unique torx head design prevents slipping as surgeons tighten the screw into the pedicle.
Technical Specifications of Anterior Fixation System
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product No. |

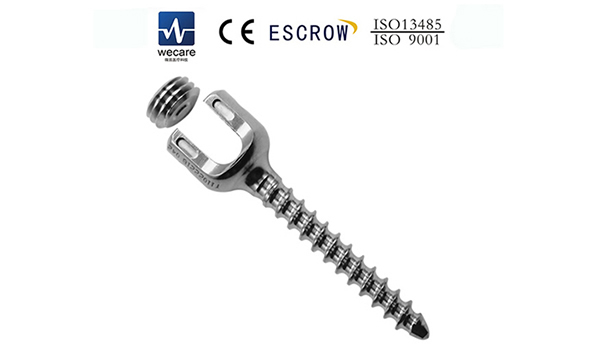

KSS 5.5 Pedicle screw with open tulip head |
Titanium alloy |
4.0 |
25 |
6214025 |
30 |
6214030 |
4.5 |
30 |
6214530 |
35 |
6214535 |
5.0 |
30 |
6215030 |
35 |
6215035 |
40 |
6215040 |
5.5 |
30 |
6215530 |
35 |
6215535 |
40 |
6215540 |
6.0 |
35 |
6216035 |
40 |
6216040 |
45 |
6216045 |
50 |
6216050 |
6.5 |
35 |
6216535 |
40 |
6216540 |
45 |
6216545 |
50 |
6216550 |
55 |
6216555 |
7.0 |
35 |
6217035 |
40 |
6217040 |
45 |
6217045 |
Technical Specifications of Anterior Fixation System
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product No. |

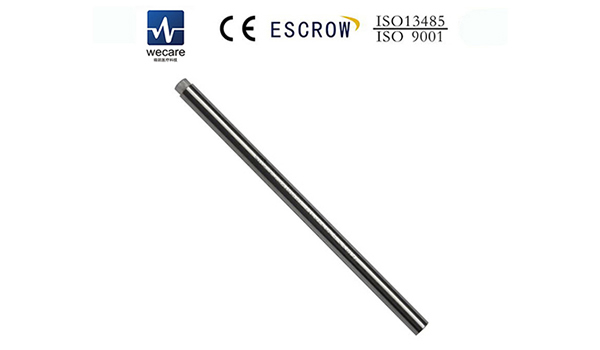

Rod |
Titanium alloy |
5.5 |
60-120 (minimum increment of 10mm) |
6240060-120 |
140-360 (minimum increment of 20mm) |
62401140-360 |
Technical Specifications of Anterior Fixation System
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product No. |

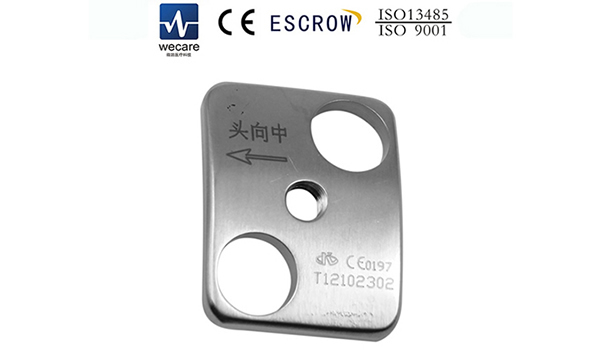

Double Rod Washer |
Pure titanium |
Headward (small/medium/large) |
6270001 |
6270002 |
6270003 |
Tailward (small/medium/large) |
6270011 |
6270012 |
6270013 |
Technical Specifications of Anterior Fixation System
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product No. |

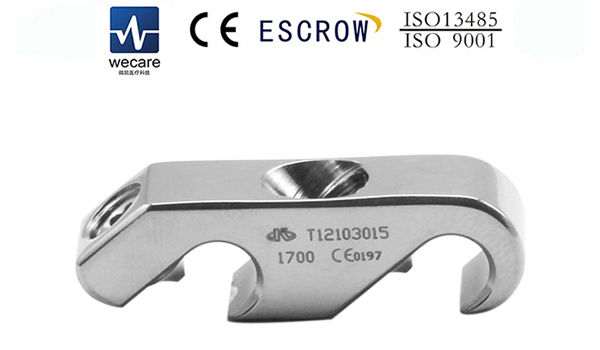

Anterior cross connector |
Titanium alloy |
5.5 |
13 |
6260013 |
14 |
6260014 |
15 |
6260015 |
16 |
6260016 |
17 |
6260017 |
18 |
6260018 |
Technical Specifications of Anterior Fixation System
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product No. |

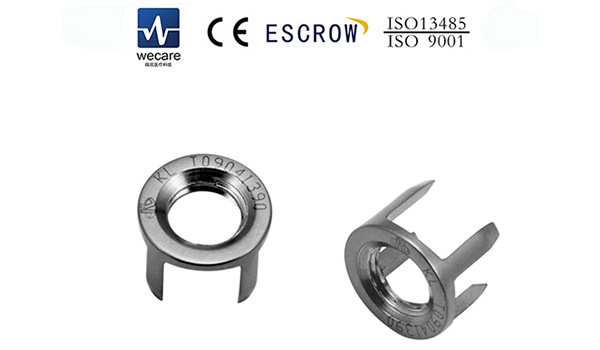

Single Rod Washer |
Titanium alloy |
|
6280000 |
