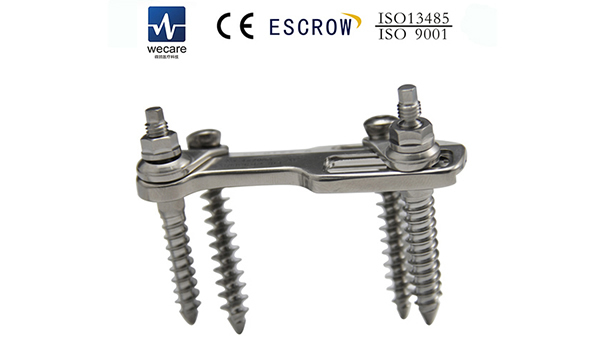

Anterior Thoracolumbar Plate-I System
Benefits of Anterior Thoracolumbar Plate
1. Both vertebral screw and pedicle screw are polyaxial screws, providing a certain range of rotating motion around the screw head. These screws can be inserted at an angle into the bone for ease of operation, time saving, and better patient outcomes.
2. Anterior thoracolumbar plate is designed to withstand thoracic and lumbar loads. Unique slider mechanism allows the thoracic plate and thoracolumbar plate to slide left and right in a distance range of 16mm and 18mm respectively.
3. The pedicle screw passes through the anterior thoracolumbar plate and inserts into the pedicle. Make sure the screw head is lower than the upper surface of plate in case the screw would back out accidentally from the pedicle.
Technical Specs of Thoracolumbar Plate
Product name |
Material |
Length (mm) |
Product ID No. |

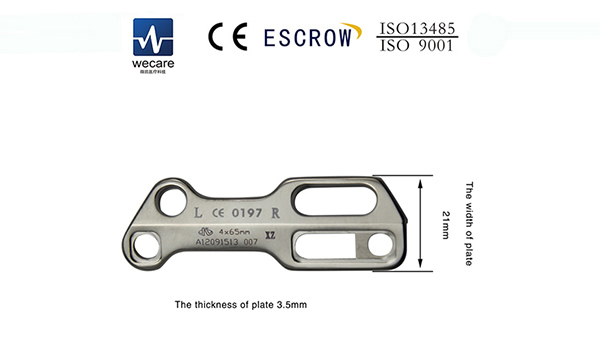

Anterior thoracic vertebra plate-I |
Pure titanium |
60 |
6660060 |
65 |
6660065 |
70 |
6660070 |
75 |
6660075 |
80 |
6660080 |
85 |
6660085 |
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |
Vertebral screw (thoracic screw) |
Titanium alloy |
5.5 |
25 |
6675525 |
30 |
6675530 |
35 |
6675535 |
6.0 |
30 |
6676030 |
35 |
6676035 |
40 |
6676040 |
5.5 |
25 |
6685525 |
Vertebral screw (thoracic screw) |
30 |
6685530 |
35 |
6685535 |

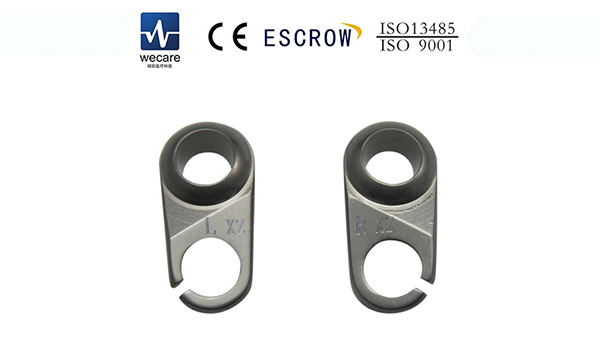

Collar (thoracic vertebra) |
Pure titanium |
|
L |
669000L |
R |
669000R |
Anterior Thoracolumbar Plate-I

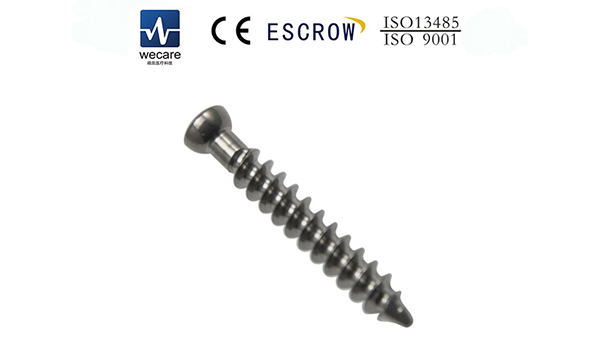

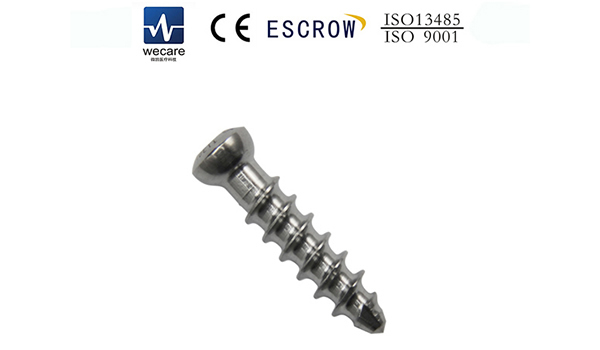

Vertebral Screw (Thoracic Screw)
Vertebral Screw (Thoracic Screw)
Product name |
Material |
Length (mm) |
Product ID No. |

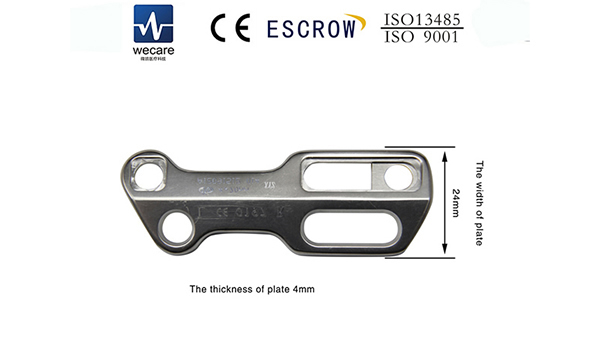

Anterior Thoracolumbar plate-I |
Pure titanium |
40 |
6610040 |
50 |
6610050 |
60 |
6610060 |
65 |
6610065 |
70 |
6610070 |
75 |
6610075 |
80 |
6610080 |
85 |
6610085 |
90 |
6610090 |
95 |
6610095 |
100 |
6610100 |
105 |
6610105 |
110 |
6610110 |
120 |
6610120 |
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |

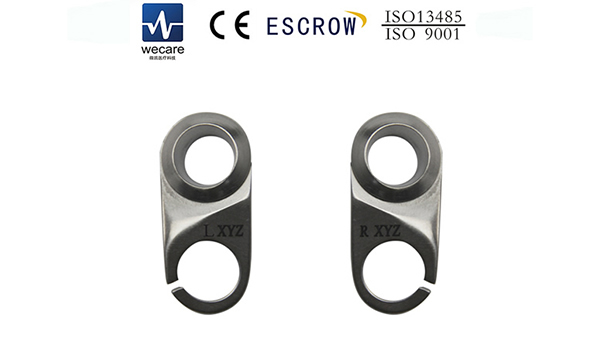

Washer (thoracic vertebra) |
Pure titanium |
|
L |
669000L |
R |
669000R |

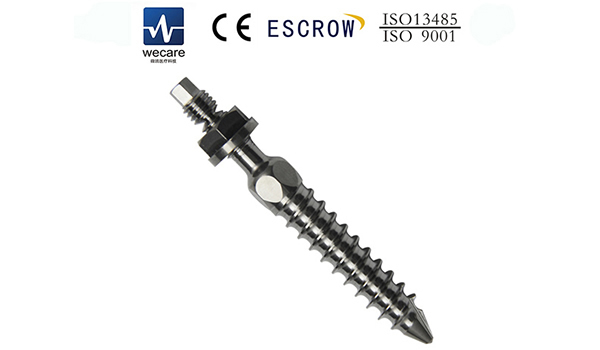

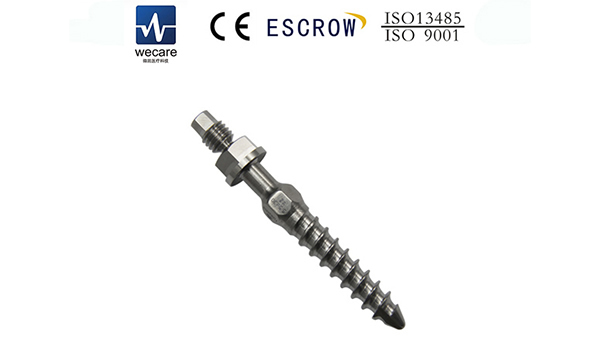

Vertebral Screw (Thoracolumbar Screw)
Vertebral Screw (Thoracolumbar Screw)
Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |
Vertebral screw (thoracic screw) |
Titanium alloy |
7.0 |
35 |
6627035 |
40 |
6627040 |
45 |
6627045 |
50 |
6627050 |
Vertebral screw
(thoracic screw) |
6.5 |
30 |
6636530 |
35 |
6636535 |
40 |
6636540 |
45 |
6636545 |
50 |
6636550 |
