Spinal Fixation System
, KSS-III6.0

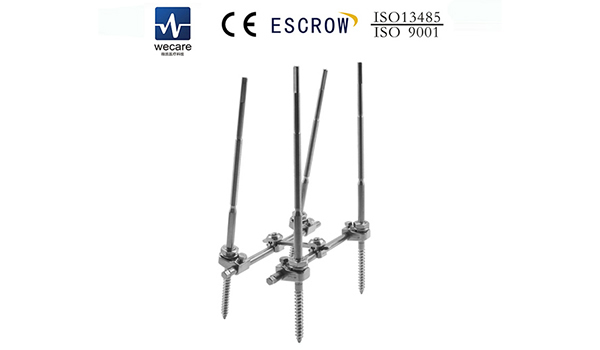

KSS-III6.0 Spinal Fixation System
The KSS-III6.0 general purpose spinal fixation system comes with an offset connector that provides a ±16° range of motion. The connector has holes that allow the insertion of pedicle screws for realigning inwardly-curved spinal segments into their normal position. Using a spine distractor restores the normal foraminal height, thereby re-establishing the tension of the posterior ligaments.
Technical Specs of Spinal Fixation System
| Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |

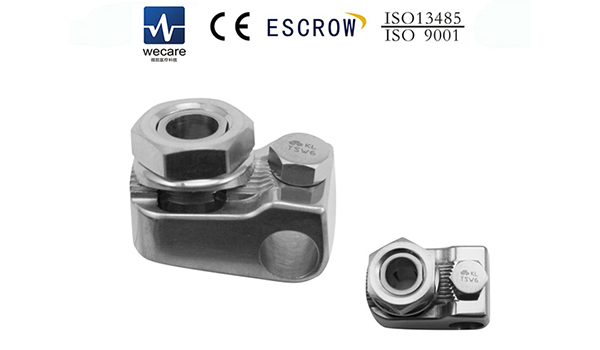

| Offset connector |
Titanium alloy |
|
|
6310000 |
| Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |

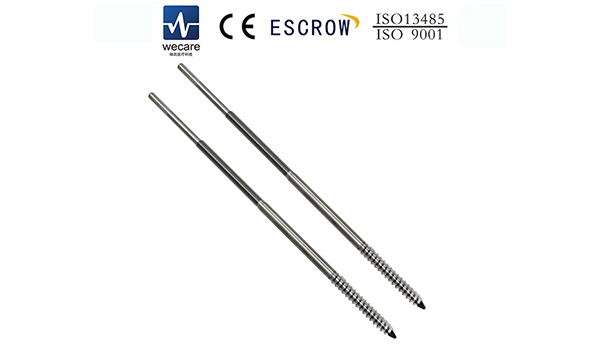

| Extended pedicle screw |
Titanium alloy |
5.5 |
30 |
63355 |
| 35 |
633553530 |
| 6.0 |
35 |
6336035 |
| 40 |
6336040 |
| 6.5 |
40 |
6336540 |
| 45 |
6336545 |
| 50 |
6336550 |
| 7.0 |
45 |
6337045 |
| Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |

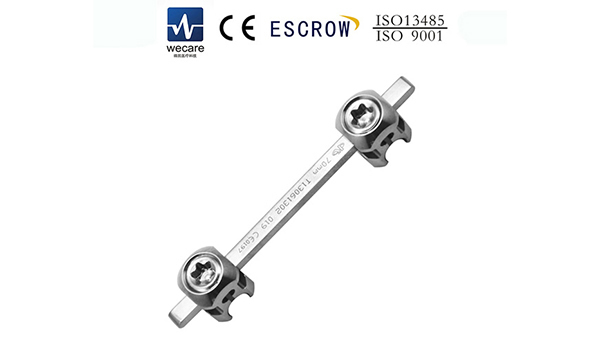

| EF6.0 cross connector |
Titanium alloy |
6.0 |
50 |
6190050 |
| 60 |
6190060 |
| 70 |
6190070 |
| 80 |
6190080 |
| 90 |
6190090 |
| Product name |
Material |
Diameter (mm) |
Length (mm) |
Product ID No. |

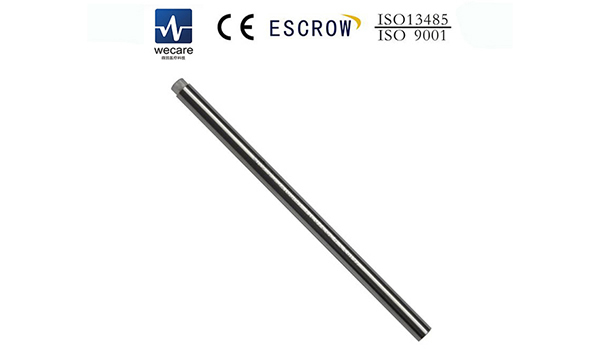

| Rod |
Titanium alloy |
6.0 |
50-180 (minimum increment of 10mm) |
6150050-180 |
| 200-360 (minimum increment of 20mm) |
6150200-360 |
